Wastewater Treatment Solutions

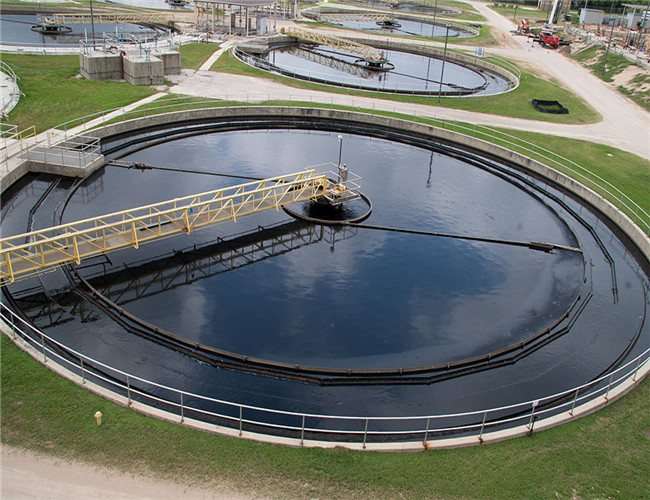

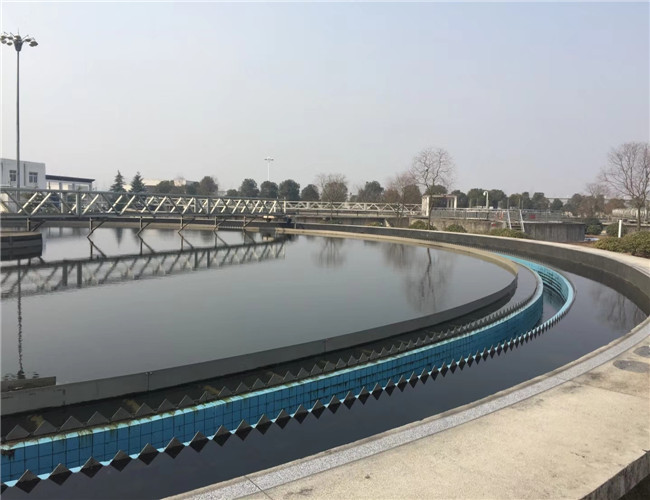

Peripheral(Central)Drive Sludge Scraper

Introduction

This periphery drive type mud scraper is mainly composed of bridge, cut-off walls, transmission system, water tank, sludge collection tank , sludge discharge device, electrical device.. Water to be treated enters the water tank though central pipes and then flows to sedimentation basin. Clean water at the upper layer will be directly discharged. Sludge at the bottom will be pumped to the collection tank and finally be discharged out .

Characteristics

1)Designed with a truss structure, the water treatment equipment possesses a compact structure and nice appearance.

2)It’s easy to maintain and costs little.

3)The scraper bridge can be customized upon request. Components that are directly contacted with the water are made using stainless steel.

Technical Parameters

Model

Diameter of tank (m)

Peripheral velocity(m/min)

Depth of tank (m)

CXZB-20

20

1.6

3-5.6

CXZB-25

25

1.7

CXZB-30

30

1.8

CXZB-37

37

2.0

CXZB-45

45

2.2

CXZB-55

55

2.4

CXZB-60

60

2.6
