Introduction
The membrane bioreactor is a perfect combination of a membrane filtration process with the biotechnology. The MBR system works effectively in blocking activated sludge and macromolecular organics that used to be done by a secondary sedimentation tank.
Application
Hotels, restaurants, hospitals, scenic area.
Communities, towns, schools, business parks.
Stations, airports, docks, shipbuilding plants.
Industrial wastewater.

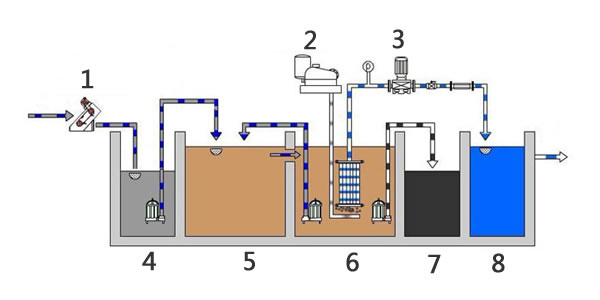

Technical Process
Technical Parameters
Model
|
Capacity (m3/hr)
|
Dimensions (m)
|
Flow rate of air blower (m3/min)
|
Weight (t)
|
CXMBR-0.5
|
0.5
|
3.5 ×1.5 ×2
|
0.2
|
1.5
|
CXMBR-1
|
1
|
4.5 ×1.5 ×2
|
0.4
|
1.7
|
CXMBR-2
|
2
|
6 ×2 ×2.5
|
0.8
|
2.5
|
CXMBR-3
|
3
|
8 ×2 ×2.5
|
1.3
|
3.5
|
CXMBR-5
|
5
|
12 ×2 ×2.5
|
2.1
|
4.5
|
CXMBR-8
|
8
|
14×2.5×2.5
|
3.3
|
7.5
|
CXMBR-10
|
10
|
15×2.5×2.5
|
4.2
|
8.4
|
