Solid-liquid Separation Solutions

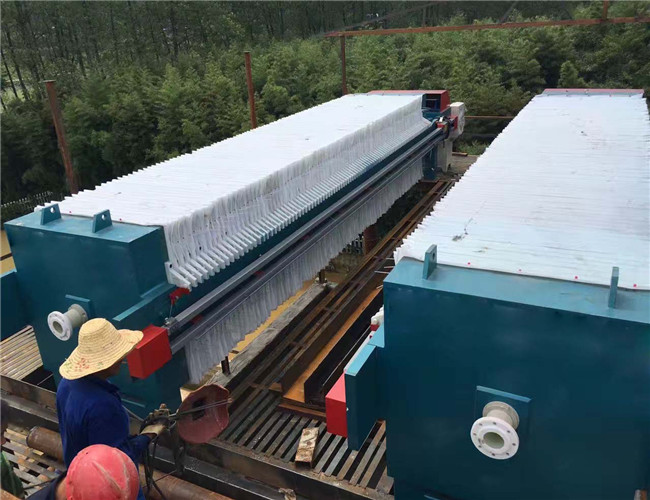

Diaphragm Plate-and-Frame Filter Press

Working principle

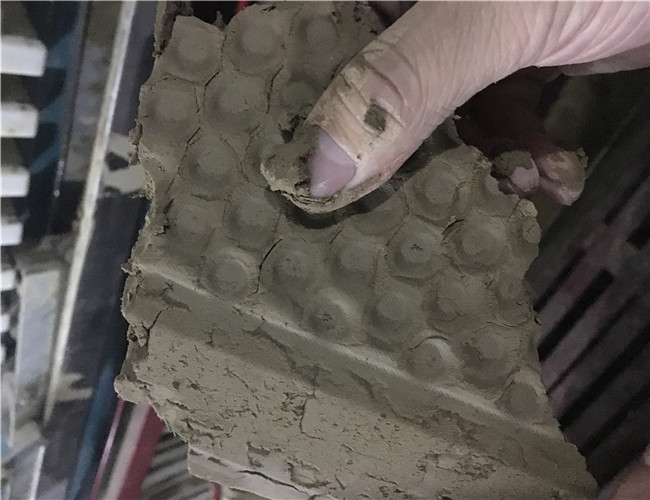

Membrane Filter Press consists of membrane plate and filter chamber made of ordered filter plates. The slurry materials are sent to filter chamber by feeding pump and then go into filtrating media (filter cloth) to separate solid and liquid in slurry material. When solid in slurry material becomes cake shape, air is sent to membrane to fully squeeze the solid to reduce moisture content. If users have high requirement about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the need.

Application

Membrane filter press is widely applied in petroleum, chemical, metallurgy, food, beverage, pharmaceutical, sugar, starch, paper, coal washing, ceramics, mineral processing and various sewage treatment industries’ separation the solid-liquid.

Technical Parameters



Model

Filtration area (m2)

Volume of filter chamber (L)

Size of filter plate (mm)

Thickness of filter cake(mm)

Dimensions of filter press (mm)

CXGM20/800-UG

20

320

800×800

30

3025×1210×1270

CXBK30/800-UG

30

480

800×800

30

3650×1210×127

CXBK50/800-UG

50

800

800×800

30

4900×1210×1270

CXBK80/1000-UG

80

1200

1000×1000

30

5373×1520×1400

CXBK100/1000-UG

100

1500

1000×1000

30

6245×1520×1400

CXBK153/1250-UG

153

2320

1250×1250

30

7324×1810×1625

CXBK200/1250-UG

200

3040

1250×1250

30

7360×1770×1625

CXBK300/1500-UG

300

5100

1500×1500

30

9595×2520×2570
