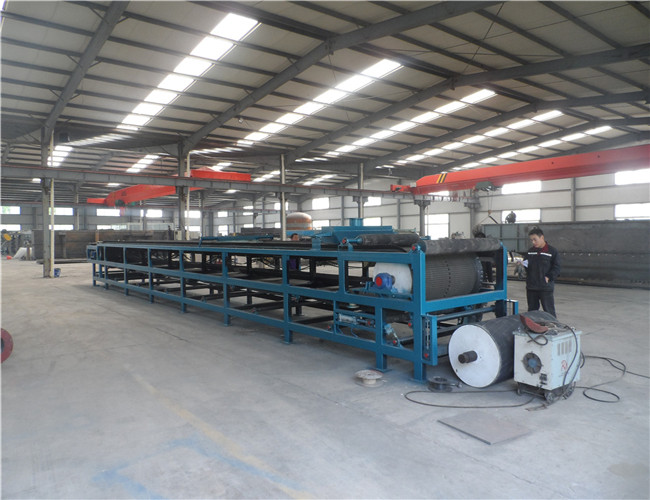

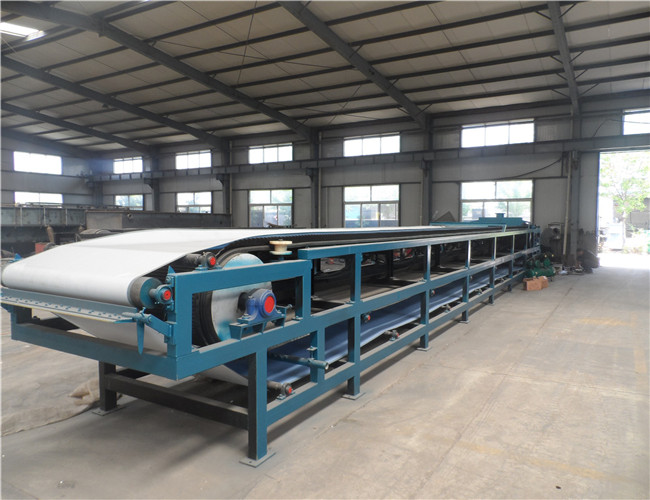

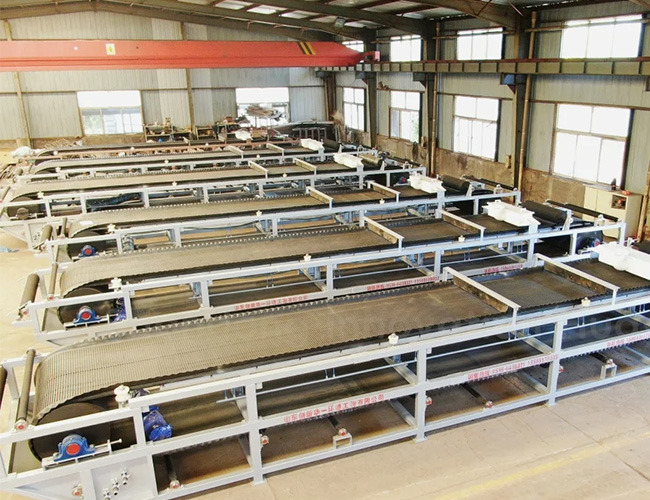

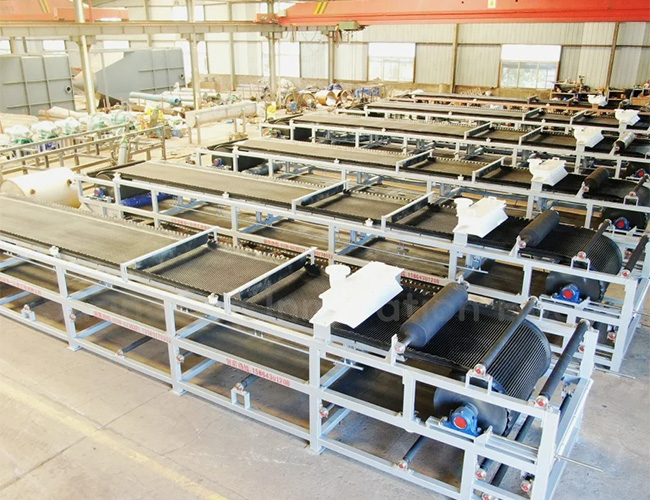

Belt Vacuum Filter

Introduction

The vacuum belt filter impelled by a vacuum pump, it achieves remarkable effect in liquid and solid separation. Vacuum belt filter is able to continuously complete filtration, washing, dewatering, discharging and filter cloth cleaning. The liquid produced in the filtration and washing program can be collected separately. Plus, the belt filter system realizes fair current and countercurrent washing. A modular structure is designed with this equipment, allowing for flexible installation and convenient transport.

Application

It has been widely used for separating liquid from solid in mining, chemical engineering, paper making, pharmaceuticals and environmental protection, Particularly it receives high praise in FGD (Flue Gas Desulfurization).

Technical Parameters

Model

width of filtration (mm)

filter area(m²)

Dimension(m)

CXDU1-630

630

1

5.7×0.98×1.5

CXDU2-630

630

2

7.7×0.98×1.5

CXDU3-630

630

3

8.7×1.08×1.5

CXDU4-800

800

4

8.7×1.28×1.5

CXDU5-800

800

5

10.7×1.28×1.5

CXDU6-1000

1000

8

11.2×1.48×1.5

CXDU10-1000

1000

10

13.7×1.48×1.5

CXDU15-1200

1200

15

16.7×1.6×1.5

CXDU20-1700

1700

20

15.7×2.2×1.5

CXDU25-1800

1800

25

17.1×2.2×1.5

CXDU30-2400

2400

30

16.1×3×1.8

CXDU35-2400

2400

35

18×3×1.8

CXDU40-2800

2800

40

19×3.4×2

CXDU45-2800

2800

45

22×3.4×2

CXDU50-2800

3000

50

23×3.6×2

CXDU60-3000

3000

60

26×3.6×2

CXDU70-3300

3300

70

26×4×2

CXDU80-3300

3300

80

30×4×2

CXDU100-3300

3300

100

35.7×4×2.65
