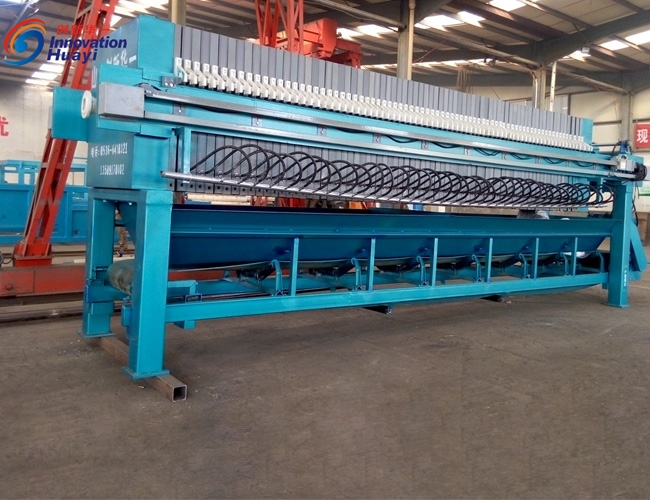

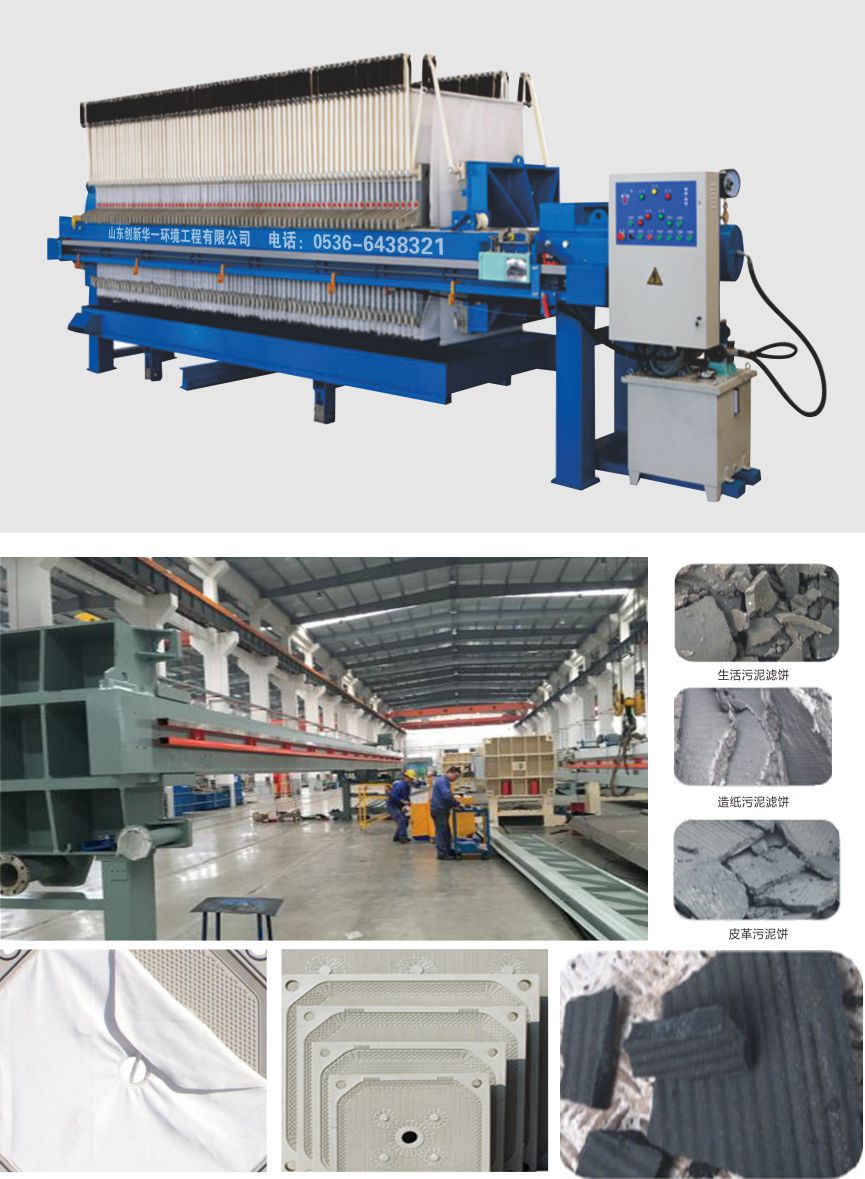

Plate-and-Frame Filter Press
Plate-and-Frame Filter Press
Working principle

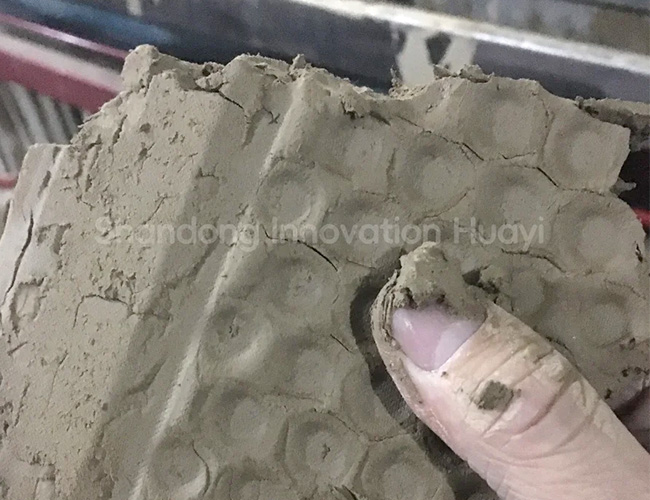

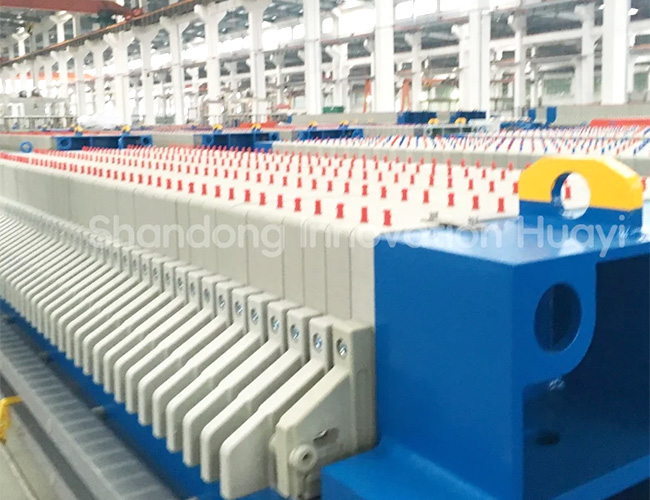

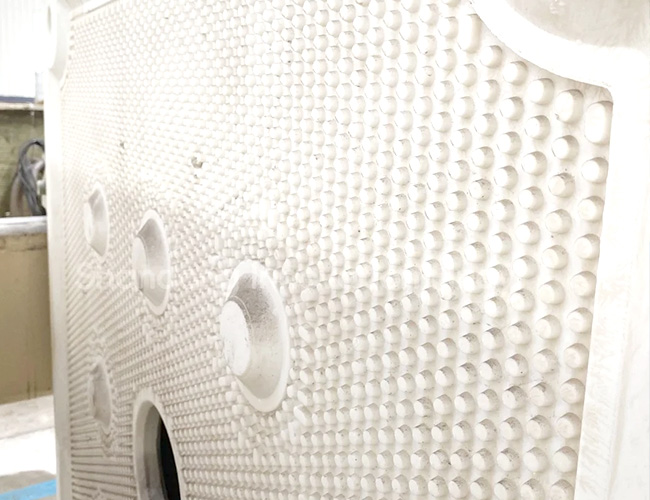

The plate and frame filter press is mainly composed of filter plates, filter cakes, filter cloths, rails, liquid tank, pressing device, etc. The filter cloth spreads in a filter board surface, it is supported by the swelling groove of filter plate, when the filter plate is clamped, filter cloth turns to sealing materials, and the cavity between every two filter plates forms a separated filter room. During the filter processing, the materials come through the central opening into filter room, the filtrate flow by the feeding pressure, flow out of the filter plate after converged.
Application
1. Sewage Treatment: Chemical engineering, metallurgy, electroplating, leather manufacturing, printing and dying, brewing, pharmaceutical producing, etc.
2. Food & Beverage: Chinese spirit, beverage, beer, yeast, citric acid, vegetable protein, soy milk, seaweed, etc.
3. Metallurgy: Gold, silver, copper, iron, zinc, rare earth, etc.
4. Clay: Kaolin, bentonite, activated clay, porcelain clay, etc.
Technical Parameters
|
Model |
Filtration area (m2) |
Volume of filter chamber (L) |
Size of filter plate (mm) |
Thickness of filter cake(mm) |
Dimensions of filter press (mm) |
|
|
CXBK10/630-U |
10 |
100 |
630×630 |
30 |
2317×1030×1015 |
|
|
CXBK15/630-U |
15 |
150 |
630×630 |
30 |
2637×1030×1015 |
|
|
CXBK20/630-U |
20 |
200 |
630×630 |
30 |
2957×1030×1015 |
|
|
CXBK30/630-U |
30 |
300 |
630×630 |
30 |
3597×1030×1015 |
|
|
CXBK30/800-U |
30 |
480 |
800×800 |
30 |
3355×1210×1270 |
|
CXBK40/800-U |
40 |
640 |
800×800 |
30 |
3955×1210×1270 |
|
CXBK50/800-U |
50 |
800 |
800×800 |
30 |
4800×1210×1270 |
|
CXBK80/1000-U |
80 |
1200 |
1000×1000 |
30 |
4745×1520×1400 |
|
CXBK100/1000-U |
100 |
1500 |
1000×1000 |
30 |
5465×1520×1400 |
|
CXBK150/1250-U |
150 |
2280 |
1250×1250 |
30 |
6220×1770×1625 |
|
CXBK200/1250-U |
200 |
3040 |
1250×1250 |
30 |
7360×1770×1625 |
